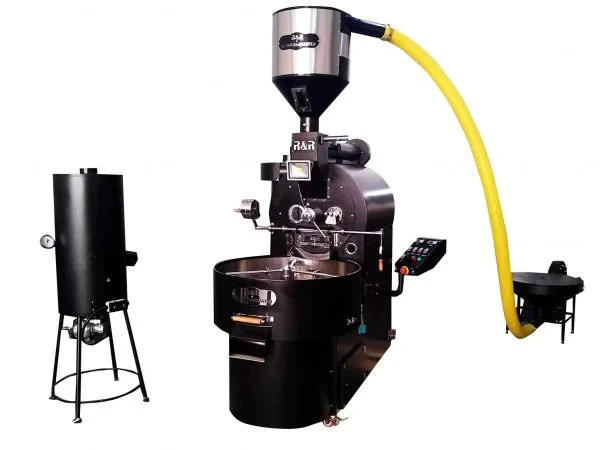

R&R R-30
R30 collects the chaffs coming from the roasted beans by means of a cyclone. Beans reaching the cooling bin are separated from the chaffs before dropping and after the cooling can be processed immediately. You don’t need to clean the chaffs out of the roaster between roasting cycles, because the cyclone is external. It is also easier to clean the coffee roaster when using an external cyclone. You can roast non-stop. Chaff collector needs to be cleaned after several cycles.
R&R Roaster a You can roast sequentially without brake. Chaff collector needs to be clean after number of roasts. Roaster R30 coffee roaster has been designed for optimal and high efficiency heat transfer and distribution. Our sophistication on coffee roasting brings the unique drum design which has homogeneous, constant and stable bean roasting at each batch.
R30 has industrial motors and equipment for long lasting and heavy-duty roasting process. You can run the machine for 24 hours 7 days.
Low Nox Premix Burner operates with the lowest emissions. and highest performance of available burners. Power and energy are worldwide concerns for environmental health. Five global environmental problems exist: climate change, acidification, eutrophication, atmospheric deposition), urban air quality, and tropospheric ozone. NOx is one of the important pollutants in the above environmental problems. R30 is equipped with the most efficient premix gas burner. Our burner is a clean heating source, providing maximum efficiency in gas burning and minimal emissions of Carbon Monoxide. It is safe, economical and stable, the flame control parameters allow complete control over your roast. Digital control unit allow you to increase or decrease the flame (thermal power).
R30 is equipped with USB Modbus data-logging connection. Ready for Artisan. It has thermocouples to record bean temperature and exhaust temperature.
Control panel has digital thermostat for both drum and exhaust thermocouples to set and monitor temperatures.
Dimensions
Sizes w x l x h : 300x270x305cm
Exhaust pipe diameter : Ø168mm
Electrical Service Requirements
Voltage & Frequency : Single Phase 110 / 220V 50hz 60hz
Three Phase 380 / 400 50hz 60hz
Power : 4,5kw/h
Electric Current (Ampere) : 22A
Airflow
Exhaust airflow : 450m3/h
Cooler airflow : 600m3/h
Capacity
Batch Size : 30kg/batch
Production : 110kg/h
Fuel
Fuel type : Propane, LPG, Natural Gas, Electricity
Gas pressure requirement : NG 20Mbar – Propane, LPG 30mbar
Source Gas Pressure : 1-4bar
Data Logging
Artisan Connection : USB
Gas consumption
| Thermal Power | Gas Consupmtion | Gas Pressure | |||
| G20 | 5,21-0,68 | m3/h | 20mbar | ||
| 6,5-50 KW/h | G30 | 3,89-0,51 | kg/h | 30mbar | |
| G31 | 3,80-0,49 | kg/h | 37mbar | ||
