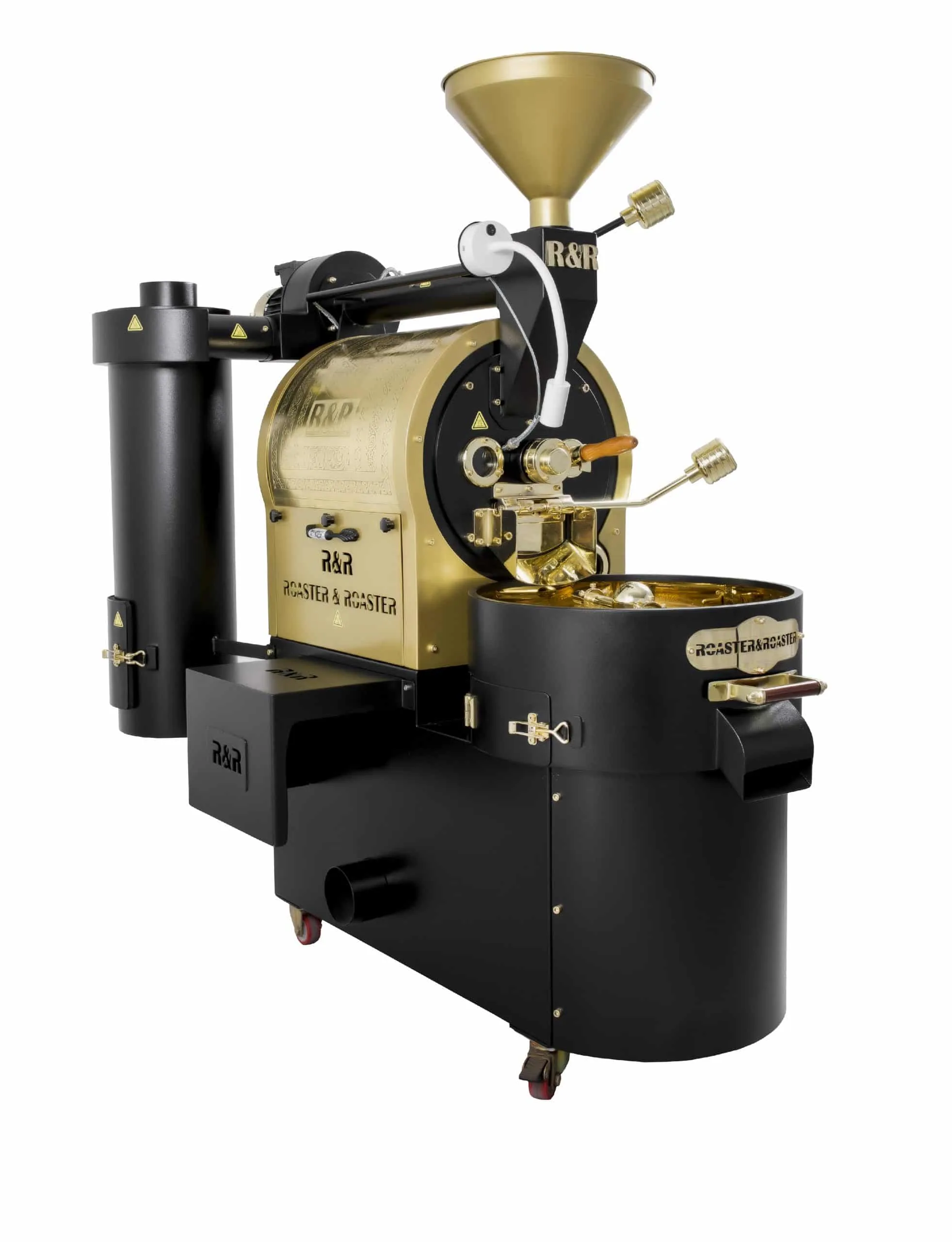

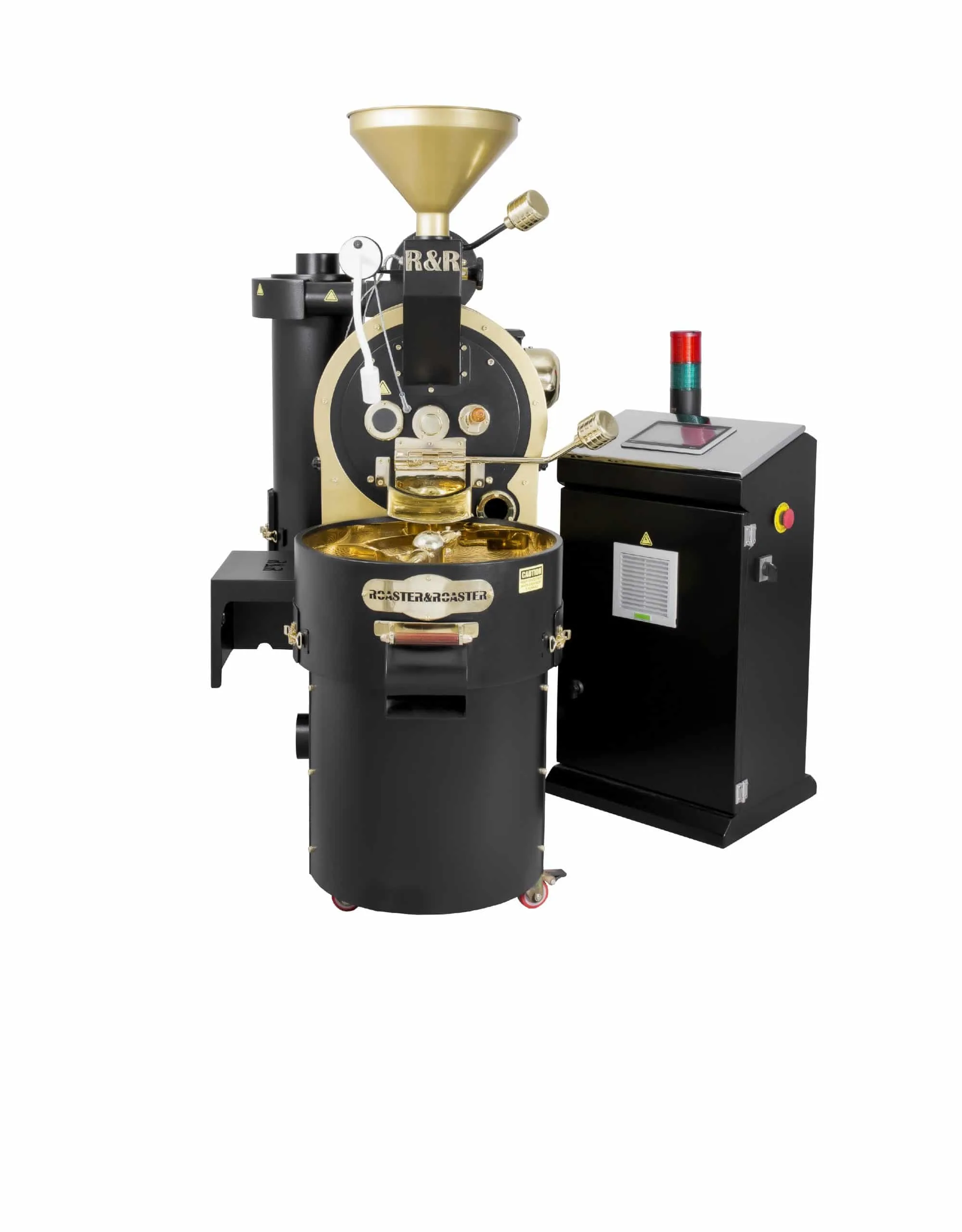

R&R Roaster and Roaster R2 coffee roaster has been designed for optimal and high efficiency heat transfer and distribution. Our sophistication on coffee roasting brings the unique drum design which has homogeneous, constant and stable bean roasting at each batch.
R2 has industrial motors and equipment for long lasting and heavy-duty roasting process. You can run the machine for 24 hours 7 days.
Low Nox Premix Burner operates with the lowest emissions. and highest performance of available burners. Power and energy are worldwide concerns for environmental health. Five global environmental problems exist: climate change, acidification, eutrophication, atmospheric deposition, urban air quality, and tropospheric ozone. NOx is one of the important pollutants in the above environmental problems. R2 is equipped with the most efficient premix gas burner. Our burner is a clean heating source, providing maximum efficiency in gas burning and minimal emissions of Carbon Monoxide. It is safe, economical and stable, the flame control parameters allow complete control over your roast. Digital control unit allow you to increase or decrease the flame (thermal power).
R2 is equipped with USB Modbus data-logging connection. Ready for Artisan. It has thermocouples to record bean temperature and exhaust temperature.
Control panel has digital thermostat for both drum and exhaust thermocouples to set and monitor temperatures.
Sizes w x l x h : 115x145x138cm
Exhaust pipe diameter : Ø76mm
Electrical Service Requirements
Voltage & Frequency : Single Phase 110 / 220V 50hz 60hz
Three Phase 380 / 400 50hz 60hz
Power : 1,15kw/h
Electric Current (Ampere) : 14A
Exhaust airflow :150m3/h
Cooler airflow :200m3/h
Batch Size : 2,5kg/batch
Production : 10kg/h
Fuel type : Propane, LPG, Natural Gas, Electricity
Gas pressure requirement : NG 20Mbar – Propane, LPG 30mbar
Source Gas Pressure : 1-4bar
Artisan Connection : USB
|Thermal Power||Gas Consupmtion||Gas Pressure|
